> Principle

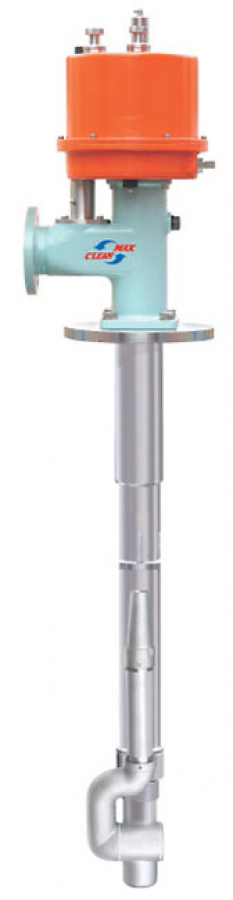

CLEANMAX UPM series is a Tank Cleaning Machines which can be completely programmable machine with single nozzle and can be installed on the tank top or deck. It is suitable for cleaning cargo and slop tanks for Crude oil and Product/Chemical tankers as well as Bulk carriers
>
Purpose and application for Hold Cleaning
– Hold Cleaning is necessary to prevent a cargo from contamination
through different cargoes change.
– Hold Cleaning can protect a cargo against slag become covered
with rust in the hold.
> Advantages
– Easy operation setting & all visible indication
– Single or multi stage operation at any desired angle range
– All setting can be adjusted during washing without stopping of
cleaning agent supply.
– Consist lowest sub-part compare other maker
– Oil-free drive unit and install filter in front of turbine
– Computerized shadow diagram calculation
– Fully programmable machines
– Infinite repeating cycle without stop of cleaning operation after
setting of operation setting
> Programmable Operation
– Single Operation : 0° ~ 180°
– Multi operation : Set any operation range within 0° and 180°
– Variable nozzle elevation pitch : 1°, 3°
– Speed adjustment : High, Low
> General operation
The hold cleaning machine will be operated in using seawater which supplied from hold cleaning pump. And the hold cleaning pump might be connected with engine room sea chest for seawater cleaning and also connected with after peak tank for fresh water rinsing.
